ItemPRO-WSME-400Rated Input Voltage(V)3ph,220V/380V/415V/440V+15%Input Frequency(Hz)50/60Rated Input Power(KVA)20Output Current(A)10-400Rated Output Voltage(V)10.6-26.3Open Circuit Voltage(V)67Strikin

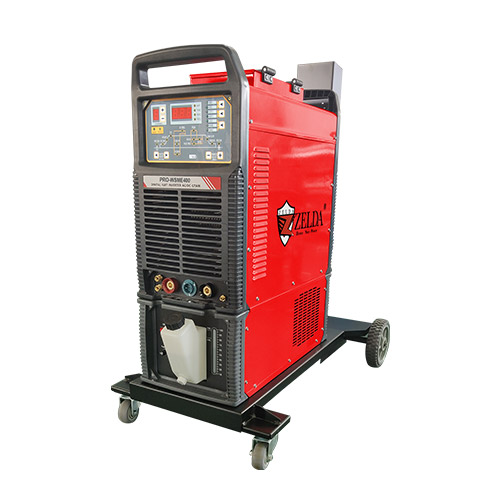

| Item | PRO-WSME-400 |
| Rated Input Voltage(V) | 3ph,220V/380V/415V/440V+15% |
| Input Frequency(Hz) | 50/60 |
| Rated Input Power(KVA) | 20 |
| Output Current(A) | 10-400 |
| Rated Output Voltage(V) | 10.6-26.3 |
| Open Circuit Voltage(V) | 67 |
| Striking Current Adjusting Range(A) | 20-160 |
| ARC Current Adjusting Range(A) | 15-400 |
| Base Value Current Adjusting Range(A) | 10-400 |
| Peak Current Adjusting Range(A) | 15-400 |
| Pulse Duty Ration(%) | 1-99 |
| Impulse Frequency(Hz) | 0.1-20 |
| Clearance Rate Range(%) | -40~+40 |
| AC Bias Range(%) | -50~+30 |
| AC Frequency Range(Hz) | 20-200 |
| Ahead Of Time(S) | 0.1-5 |
| Lag Time(S) | 1-10 |
| Ramp Time(S) | 0.1-10 |
| Slow Down Time(S) | 0.1-10 |
| Rated Duty Cycle(%) | 100% |
| Weight(Kg) | 170 |
