ItemPRO-TIG/MMA-252PRated Input Voltage(V)1ph, 110/220VInput Frequency(Hz)50/60Output Current (A)10-250ANo Load Voltage(V)62Post-Flow(S)0-10Finish Amper(A)10-250Down Slop(S)0-10Base Amper(A)10-250Up S

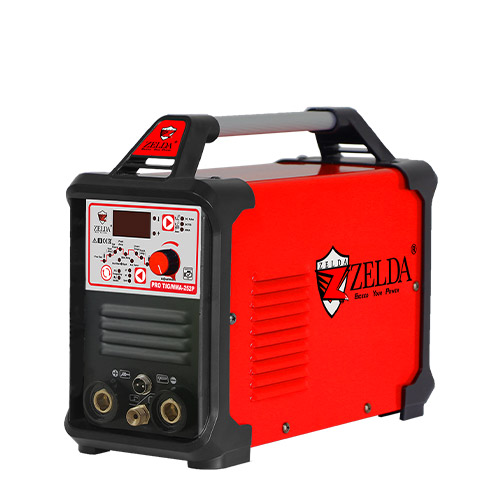

| Item | PRO-TIG/MMA-252P |
| Rated Input Voltage(V) | 1ph, 110/220V |
| Input Frequency(Hz) | 50/60 |
| Output Current (A) | 10-250A |
| No Load Voltage(V) | 62 |
| Post-Flow(S) | 0-10 |
| Finish Amper(A) | 10-250 |
| Down Slop(S) | 0-10 |
| Base Amper(A) | 10-250 |
| Up Slop(S) | 0-10 |
| Start Amper | 10-250 |
| Preflow(S) | 0-3 |
| Arcing Way | HF |
| Pulse Frequency(HZ) | 0.5-200 |
| Pulse Width | 10 - 90% |
| Hot Start Amper(A) | 10-100 |
| Hot Start Time(S) | 0.1 - 1 |
| ARC FORCE (A) | 10-100 |
| Duty Cycle(%) | 80% |
| Efficiency(%) | 85 |
| Insulation Class | F |
| Protection Class | Ip21S |
| Weight(Kg) | 10 |
