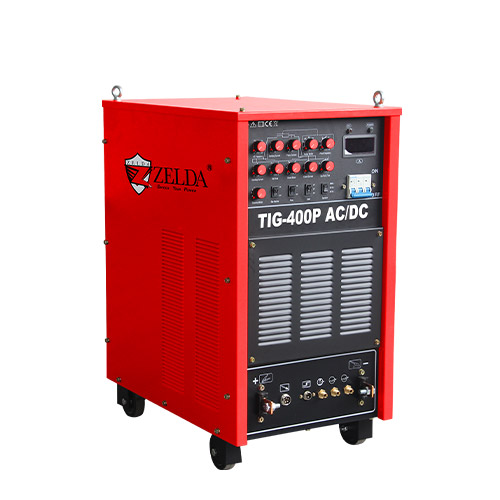

TIG-400P AC/DC
ItemTIG-400P AC/DCRated Input Voltage(V)3ph,380V+15%Input Frequency(Hz)50/60Rated Input Current(A)70Output Current(A)10-400Down Slope(S)0-10Duty Cycle(%)100%Post Flow(S)1-10Vale Value Current(A)20-80I
| Item | TIG-400P AC/DC |
| Rated Input Voltage(V) | 3ph,380V+15% |
| Input Frequency(Hz) | 50/60 |
| Rated Input Current(A) | 70 |
| Output Current(A) | 10-400 |
| Down Slope(S) | 0-10 |
| Duty Cycle(%) | 100% |
| Post Flow(S) | 1-10 |
| Vale Value Current(A) | 20-80 |
| Insulation Class | F |
| Protection Class | Ip21S |
| Weight(Kg) | 38 |
