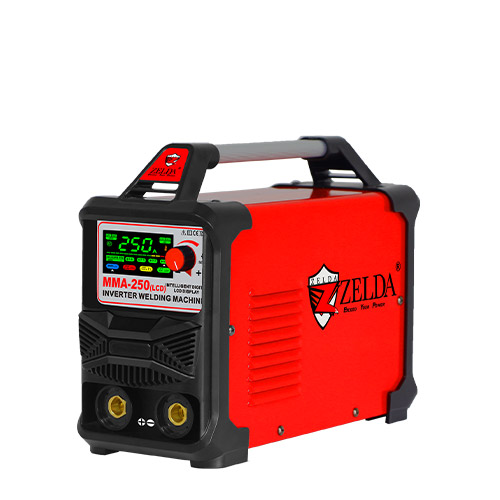

MMA-250(LCD)
ItemMMA-250(LCD)Rated Input Voltage(V)1ph,23015%Input Frequency(Hz)50/60Rated Input Power(KVA)8.7Output Current(A)30-200No-load Voltage(V)62Output Voltage(V)28Duty Cycle(%)60%Efficiency(%)85Insulation
| Item | MMA-250(LCD) |
| Rated Input Voltage(V) | 1ph,230±15% |
| Input Frequency(Hz) | 50/60 |
| Rated Input Power(KVA) | 8.7 |
| Output Current(A) | 30-200 |
| No-load Voltage(V) | 62 |
| Output Voltage(V) | 28 |
| Duty Cycle(%) | 60% |
| Efficiency(%) | 85 |
| Insulation Class | F |
| Protection Class | Ip21S |
| Weight(Kg) | 6.4 |
| Electrode Diameter(mm) | 1.6-5.0 |
