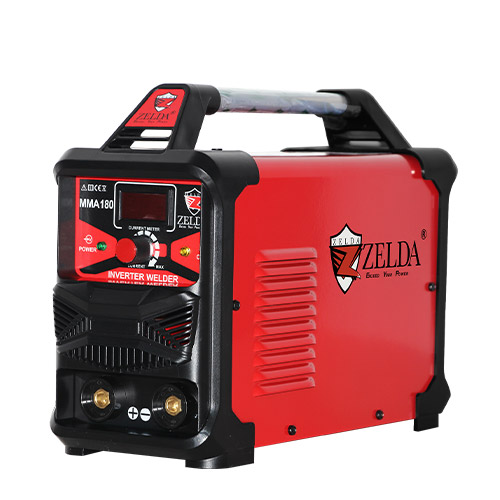

MMA-180
ItemMMA-180Rated Input Voltage(V)1ph,23015%Input Frequency(Hz)50/60Rated Input Power(KVA)5.6Output Current(A)30-140No-load Voltage(V)62Output Voltage(V)25.6Duty Cycle(%)60%Efficiency(%)85Insulation Cl
| Item | MMA-180 |
| Rated Input Voltage(V) | 1ph,230±15% |
| Input Frequency(Hz) | 50/60 |
| Rated Input Power(KVA) | 5.6 |
| Output Current(A) | 30-140 |
| No-load Voltage(V) | 62 |
| Output Voltage(V) | 25.6 |
| Duty Cycle(%) | 60% |
| Efficiency(%) | 85 |
| Insulation Class | F |
| Protection Class | Ip21S |
| Weight(Kg) | 5.8 |
| Electrode Diameter(mm) | 1.6-3.2 |
